Hyson is a specialized manufacturer of Steel Formwork & Scaffolding, Steel Structure, and OEM Metal Fabrication. With over 15 years of expertise and a professional manufacturing base, we bridge the gap between complex engineering drawings and solid steel realities. From the iconic Sutong Yangtze River Bridge to power plants in Africa, our ISO-certified solutions are trusted by industry giants like CCCC and CRCC.
Manufacturing & Craftsmanship: Our professional fabrication base is engineered for high-efficiency, heavy-duty production.
Precision Profiling & Cutting: Hyson is a China Custom Fork Head Support Manufacturer and OEM Fork Head Support Company, equipped with advanced medium-to-heavy plate laser cutting machines, ensuring high tolerance and clean edges for all custom steel components.
Artisan Welding: We combine heavy capacity with expert craftsmanship. Our team of certified senior welders (AWS / EN standards) expertly handles complex joints and non-standard fabrication that simple automation cannot match.
Innovation & Quality: Holding 12 Utility Patents, we operate under strict ISO 9001 and BS1139 / EN74 standards, guaranteeing consistency from raw material profiling to final assembly.
Main Features and Advantages

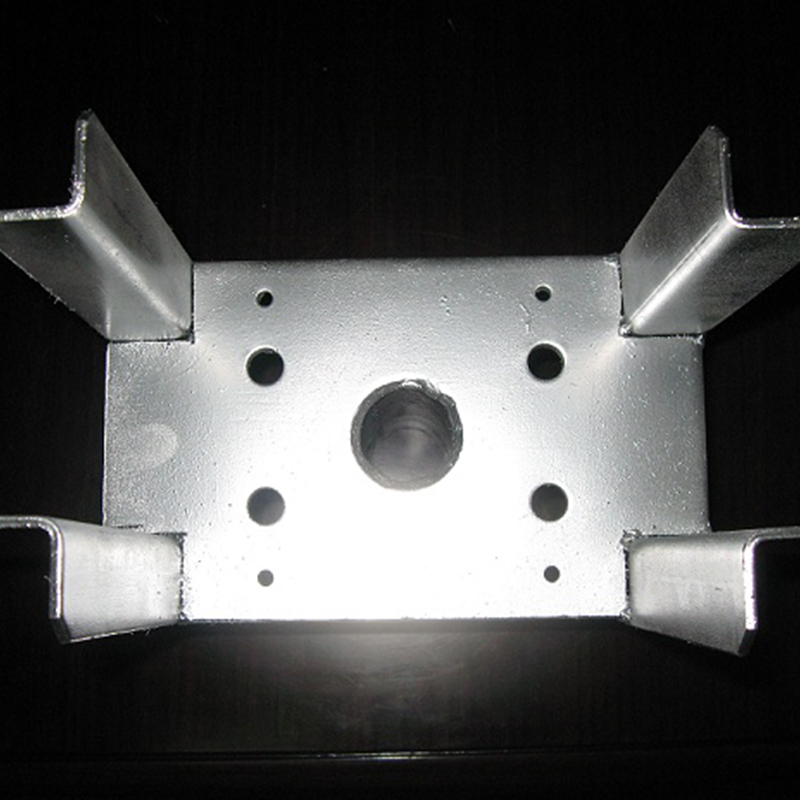

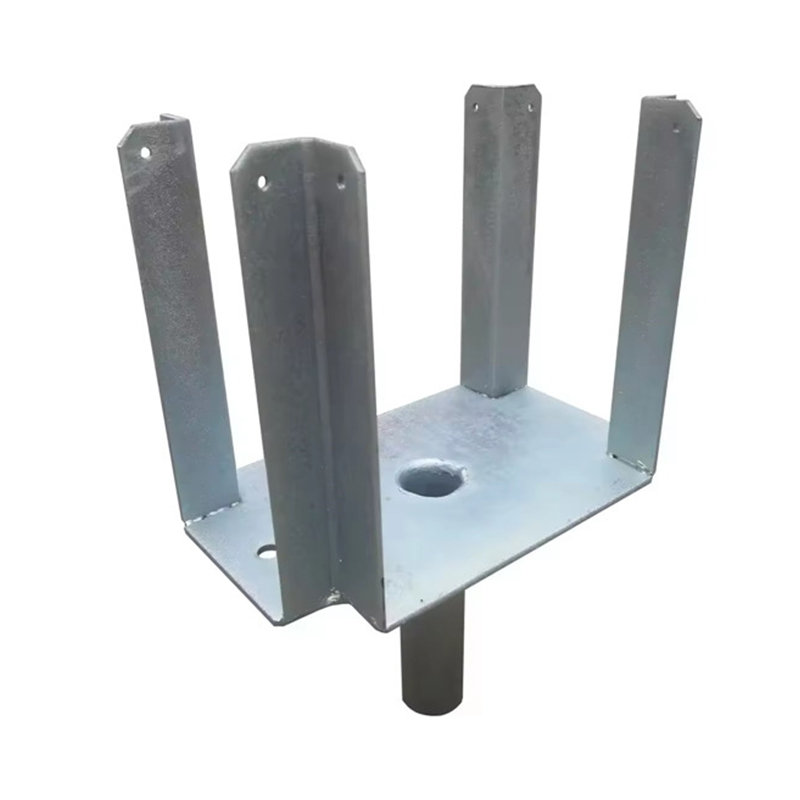

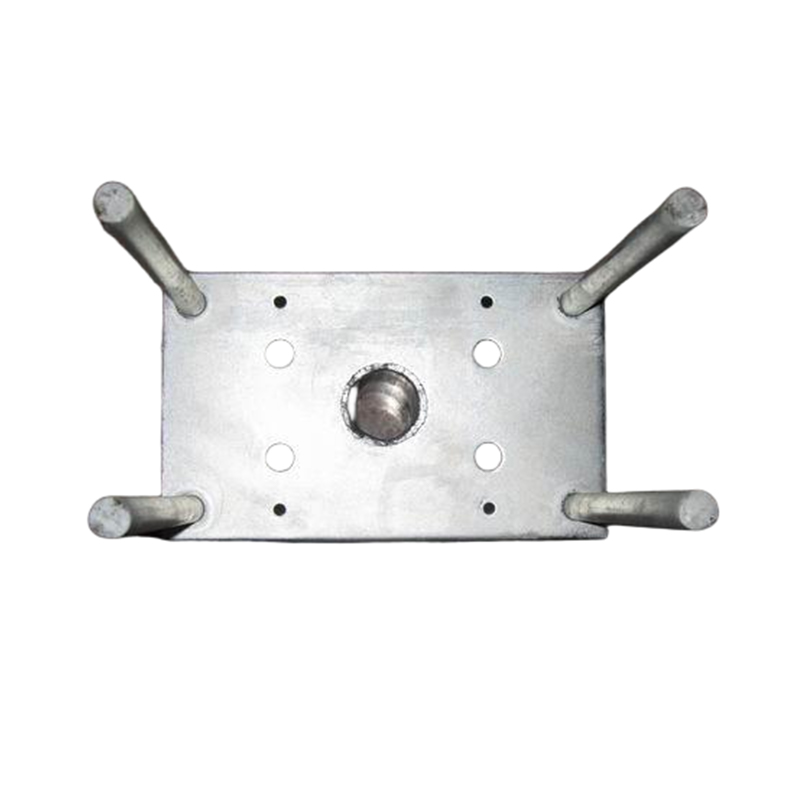

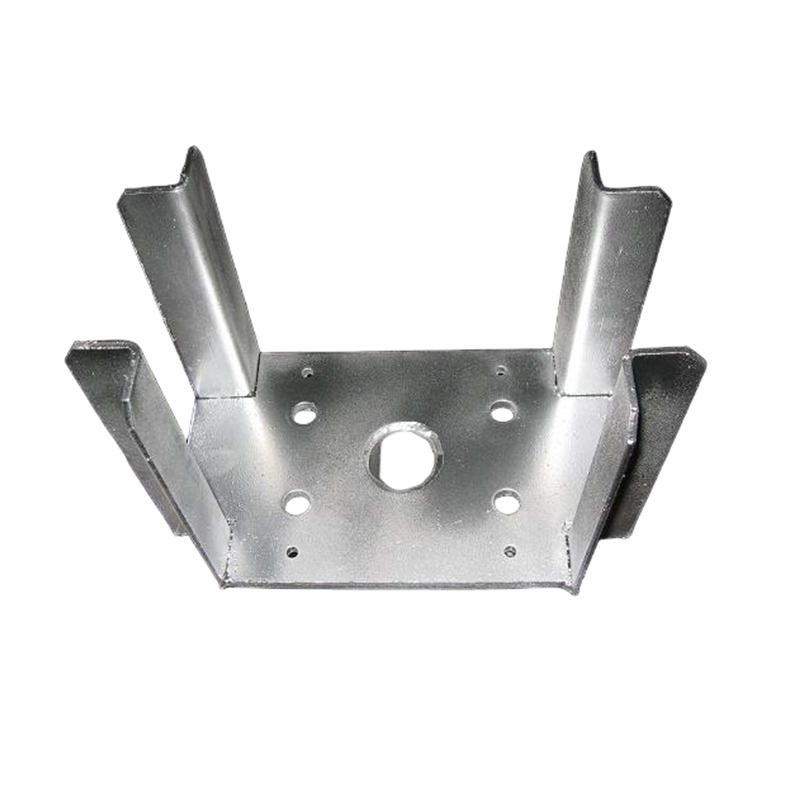

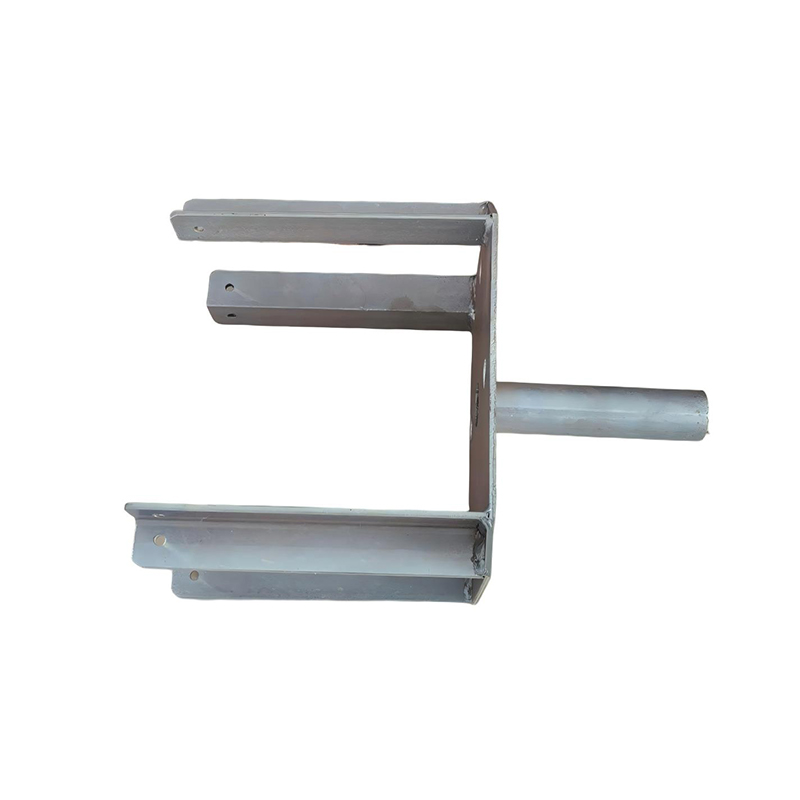

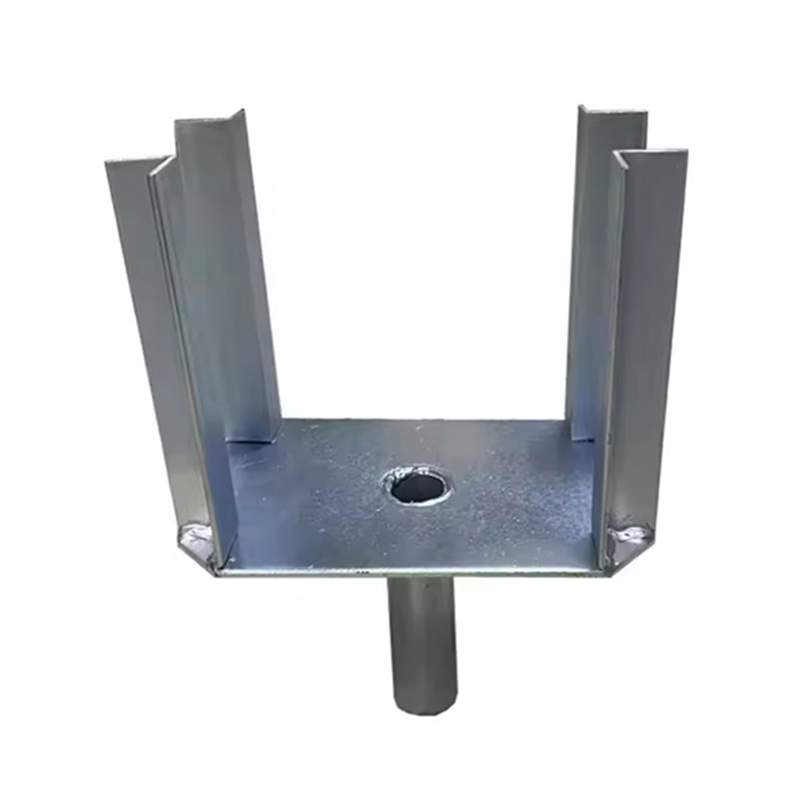

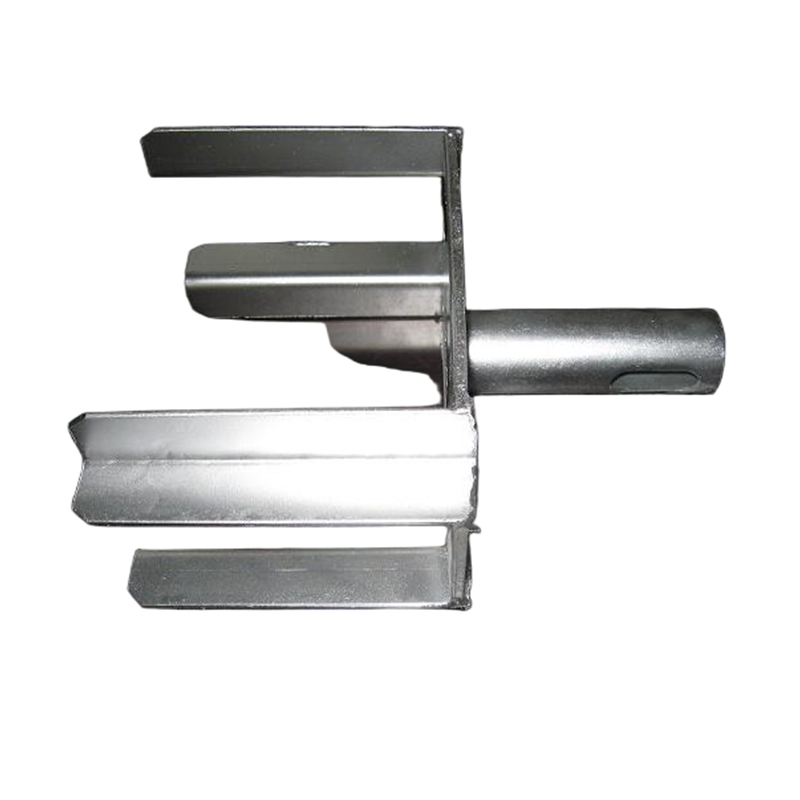

Forked support for even force distribution: The integrated four-corner fork design at the top precisely engages with the formwork ribs and primary and secondary beams. Compared to the U-shaped grooves of adjustable supports, this design provides more contact points and more even force distribution, effectively distributing the vertical load on the formwork and concrete, preventing excessive localized stress that could lead to formwork deformation or damage.

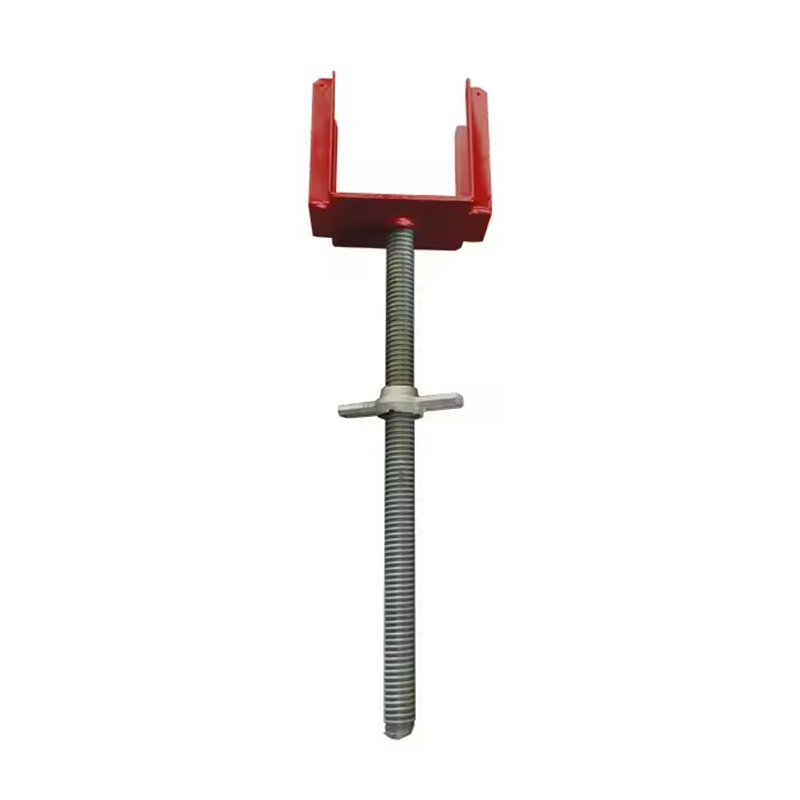

Precise fine-thread adjustment for strong adaptability: Utilizing a precision fine-thread structure, the adjustment accuracy reaches ±0.5mm, with an adjustment range of 40mm-180mm. This accurately compensates for support height deviations, adapting to different formwork thicknesses and support height requirements, ensuring the levelness and verticality of the formwork, and reducing rework workload later.
Robust structure for reliable load-bearing capacity: Constructed from Q235/Q345 high-strength carbon steel, the fork-shaped head is integrally formed through stamping and forging, reinforced with reinforcing ribs, resulting in outstanding compressive and deformation resistance. A single top support can bear a load of 90kN-130kN, stably supporting large formwork and concrete loads, eliminating the risk of breakage and deformation.
Tight Connection, Anti-Slip and Anti-Drop: The fork-shaped grooves are precision-ground to fit the dimensions of the formwork ribs, ensuring a secure fit. Anti-slip pads effectively prevent the formwork ribs from sliding or shifting, ensuring structural stability during support. Suitable for batch pouring of large-scale flat formwork and floor slab formwork.
Corrosion-Resistant and Durable, Easy to Operate: The surface is hot-dip galvanized (coating thickness ≥75μm), effectively resisting corrosion from harsh environments such as construction dampness and outdoor rain, extending service life. Equipped with a rotating handle, operation is easy, allowing workers to quickly perform height fine-tuning and fixing without specialized tools, improving construction efficiency.
